Al Majd Fiber Glass Industry LLC

GRP Lining Work & Ladder

GRP Lining Work & Ladder

GRP Lining Work & Ladder

GRP Lining Work & Ladder

  • GRP Lining is recommended by consultants for RCC tanks, mild steel containers, pipe liners and more, for the following reasons:
  • Weather proofing: Protection from humidity, moisture, fungi, insects and bacterial growth and biological degradation in the container. It does not rust, rot, corrode or swell.
  • Extra thermal and electrical insulation and fire resistance can be incorporated if required. Resins are also available for storage of food items, oils, petroleum products and chemicals.
  • Fullest utilization of space and no chance of spillage, leakage or any wastage of stored material. Longer life of lining guaranteed by virtue of resin quality.
  • Ease of maintenance, cleaning and repairs.
  • Normally the lining consists of 2–3 layers of chopped strand mat hardened with resin followed by a thick layer of Top coat / Gel coat giving a thickness of approx. 2–3mm. Thickness can be varied as per specification subject to quality and life of protection required.

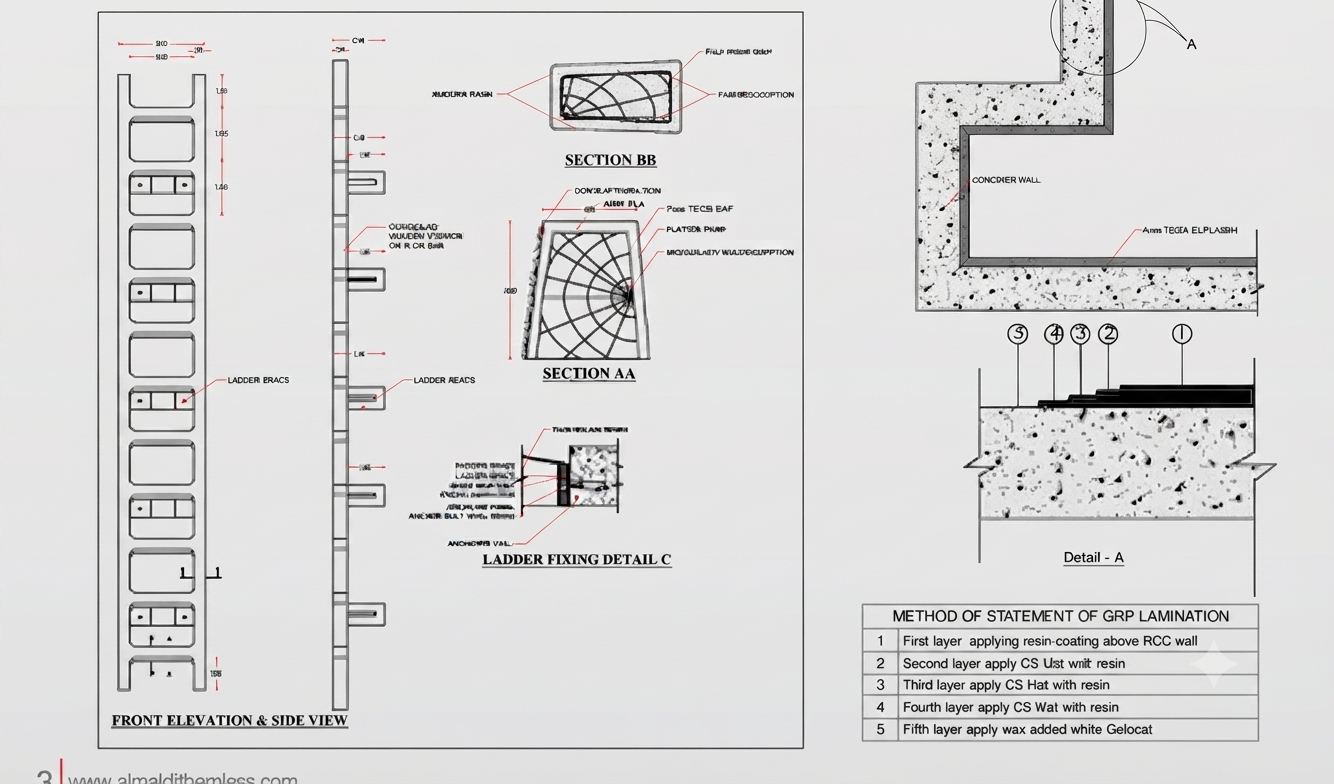

Technical Drawing

GRP Lining Technical Drawing
